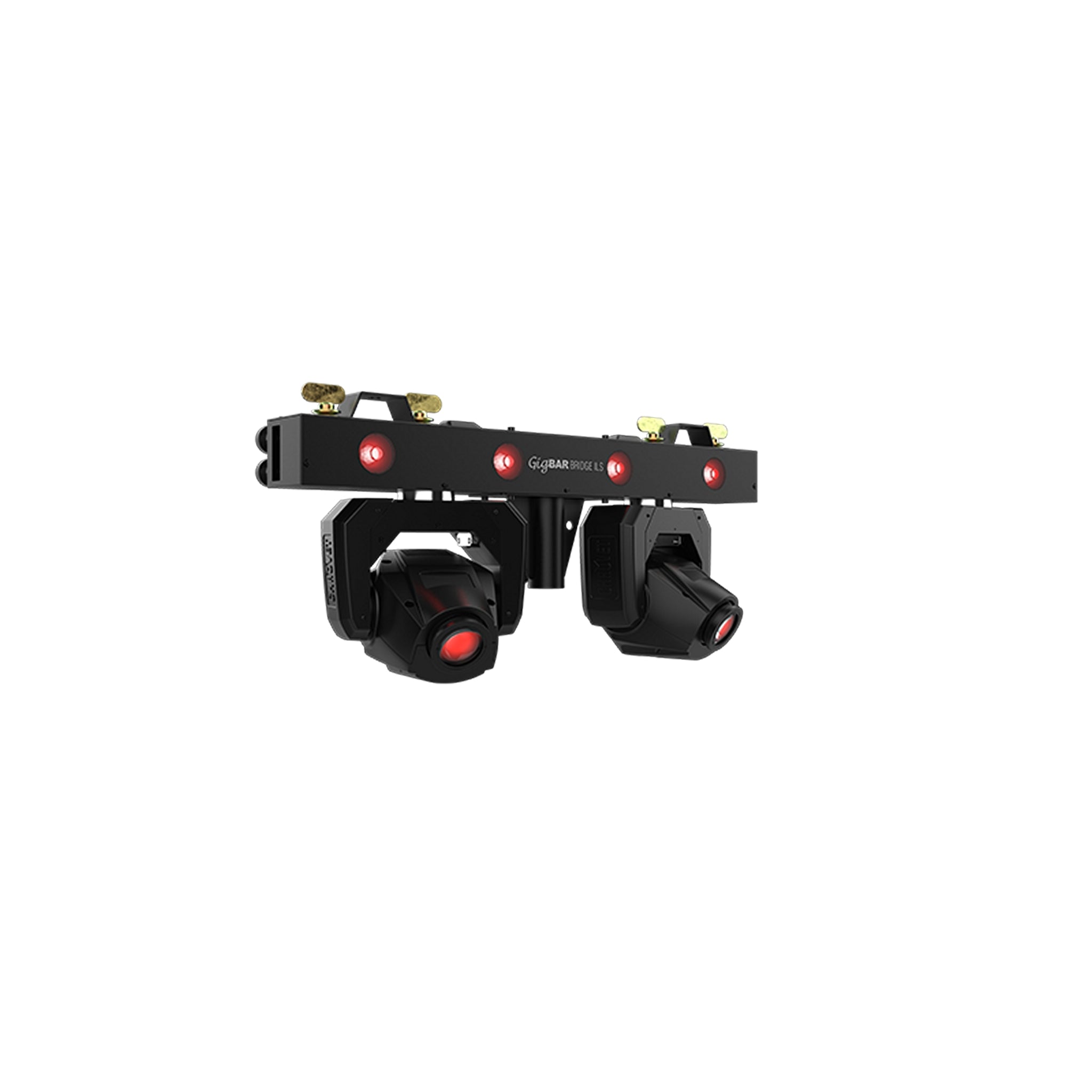

Chauvet Gigbar Bridge ILS Lighting System with Moving Heads and Wash Lights

Introducing the Chauvet DJ GigBAR Bridge ILS, a cutting-edge lighting system that offers unparalleled flexibility and dynamic lighting effects for your events. This all-in-one unit combines the power of multiple lighting technologies, including Derby, Strobe, and Laser, into a single compact package. Whether you are setting up for a small gig or a large performance, the GigBAR Bridge ILS provides the versatility and high performance needed to make your event memorable.

The GigBAR Bridge ILS features integrated IRC-6 control, which allows you to manipulate your lighting effects effortlessly from a distance. Its robust design ensures reliability and durability, making it an excellent choice for both mobile DJs and fixed installations. The system’s innovative design includes a built-in wireless DMX, which eliminates the need for cumbersome cables and allows for easy setup and control. With its impressive range of effects and user-friendly interface, the GigBAR Bridge ILS is perfect for creating stunning light shows and enhancing the ambiance of any venue.

Designed with the user in mind, this lighting system offers intuitive controls and a variety of pre-programmed scenes to suit any occasion. The GigBAR Bridge ILS is equipped with high-performance LEDs that deliver bright and vivid colors, ensuring that your audience will be captivated by the dazzling displays. Additionally, the system’s compact size and lightweight construction make it easy to transport and set up, providing a hassle-free experience for event professionals.

Key Features

• All-in-one lighting system combining Derby, Strobe, and Laser effects.
• Integrated IRC-6 control for easy manipulation of lighting effects.
• Built-in wireless DMX for cable-free operation.
• Bright and vivid LED lights for enhanced color and intensity.
• Compact and lightweight design for easy transport and setup.
• Intuitive controls with pre-programmed scenes for a variety of events.

Technical Specifications (Specs)

Dimensions
26″ x 2.8″ x 12″
Weight
18.6 lbs (8.4 kg)
DMX Channels
3, 16, or 46
DMX Connectors
3-pin XLR
Strobe Rate
0 to 20Hz
Operating Frequency
2.4 GHz
Power Linking
8 units @ 120 V; 13 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Beam Angle (wash)
22°
Field Angle (wash)
38°
Power and Current
191 W, 1.5 A @ 120 VAC, 60Hz; 175 W, 1 A @ 230 VAC, 50Hz
Fits Tripod Sizes
1.5 in (37.4 mm)
Max Unobstructed Distance (D-Fi)
600 ft (183 m)
Optional Controllers
RF, Footswitch, ILS Command
Approvals
CE, RoHS, FCC
Colors (moving head)
9 + open, split colors, continuous scroll at variable speeds
Gobos (moving head)
9 + open, continuous scroll at variable speeds
Light Source (moving head)
1 LED (cool white) 70W (3A), 50,000 hours life expectancy
Light Source (wash)
4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy
